Virtual Desktop Infrastructure (VDI) Information

What is VDI?

VDI is an acronym for Virtual Desktop Infrastructure. VDI provides access to a wide variety of software without ever having to set foot on campus. Think of it as remote controlling a loaner computer here on campus, only from anywhere in the world and from any device.

The VDI developed by the college includes a number of different profiles. Each profile contains the newest versions of Microsoft and Adobe applications. The profile most SBCC Students would use is called the “Student Desktop.”

To access the Student Desktop, you need to install the free Horizon VMWare client software on your home computer or use the VMWare html connection to SBCC’s VDI system. Most SBCC campus computers in public use areas, e.g., Library, LRC, and Campus Center, already have the VMWare client software installed.

  • Installation steps:

    Step 1 - Go to https://vmview.sbcc.edu (Note, there is no WWW at the beginning of this address and it begins with https, not http):

    Step 2 - Review the following options and select the one that is appropriate for the device you are using. Remember, most SBCC public computers have the VMWare installed so you can skip the installation.

    If you are using a personal computer (desktop or laptop) at home, select the VMware Horizon icon on the left.
    Install VMware

    Step 3 - Download the software for your operating system. Install the software like you would with any other software package you install on your home computer.

    Step 4 - In your computer’s applications, look for the VMWare Horizon client software and open it.

    You will see an icon in the top left that reads “New Server”:
    New Server

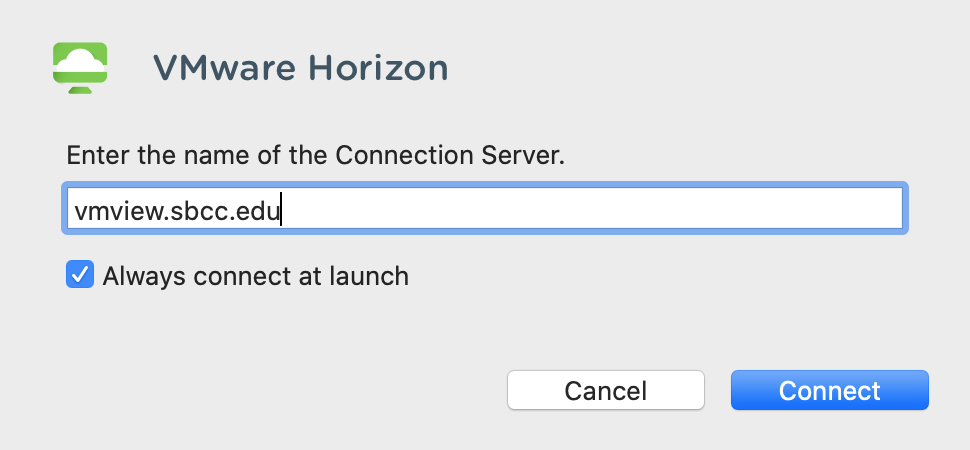

    Double-click the + and enter the server name vmview.sbcc.edu and click “Connect”.
    Enter Server Info

    Step 5: You will then be prompted to log in. Enter your Pipeline username and password, and then click “Login”. Your Pipeline username is the information before @pipeline.sbcc.edu in your email address.
    Login Credentials

    Step 6 - Select the Student Desktop icon/profile unless you have been directed to use a different profile. The system may take a few minutes to log you into the VDI. The amount of time depends on your connection speed to the internet, internet traffic, etc. After logging in you will see a Windows 10 desktop.
    Student Desktop

    Step 7 - Logging out of the VDI system.

    In the Windows’ Start Menu of the VDI, choose Shut down option. This will shut down and disconnect you from your VDI.
    Shut Down

  • Step 1 - In your computer’s applications, look for the VMWare Horizon client software and open it. Server name is VMView.sbcc.edu. Next, select the vmview.sbcc.edu icon and open it.
    vmview.sbcc.edu

    Step 2 - A new VMWare window will open. Log in using your Campus Pipeline username and password. Your Pipeline username is the information before @pipeline.sbcc.edu in your email address.
    Login Window

    Step 3 - The system may take a few minutes to log you into the VDI. The amount of time depends on your connection speed to the internet, internet traffic, etc. Select the Student Desktop desktop icon/profile unless you have been directed to use a different profile. After logging in you will see a Windows 10 desktop.
    Student Desktop

    Step 4 - Logging out of the VDI system.

    In the Windows’ Start Menu of the VDI, choose the ”Shut down” option. This will shut down and disconnect you from your VDI session.
    Shut down

  • Chromebooks provided by SBCC already have the VDI Client installed and ready to use.  Look for the icon below and then login with your Pipeline credentials.
    VDI Icon
    You can launch the complete Student Desktop or select the specific application (Microsoft Office, Adobe Suite, MatLab, Maple, etc.).

    To connect from your own Chromebook or other mobile device, follow these steps:

    Step 1 - Go to http://vmview.sbcc.edu (Note, there is no WWW at the beginning of this address)

    Step 2 - If you are using a Google Chromebook, iPad, or smartphone select VMware Horizon HTML access version icon on the right.
    Install window

    Step 3 - A new VMWare window will open. Log in using your Campus Pipeline username and password. Your Pipeline username is the information before @pipeline.sbcc.edu in your email address.
    Login window

    The system will take a few moments to log you into the VDI. The amount of time depends on your connection to the internet.

    Step 4 - Select the Student Desktop icon/profile unless you have been directed to use a different profile. After logging in you will see a Windows 10 desktop.
    Student Desktop

    Step 5 - Logging out of the VDI system.

    In the Windows’ Start Menu of the VDI, choose the “Shut down” option. This will disconnect you from the Student Desktop profile.
    Shut down

    Select the blue CLOSE button in the dialog box.
    Blue close button

    Step 6 - In the upper left hand side of the window, choose the dots/dashes’ icon and the Logout option to log completely out of the Student Desktop profile.
    Logout option

  • Files can currently be saved to your personal computer’s storage, a cloud storage space like Google Drive, or to an external USB drive. Files saved to the VDI desktop may be erased between logins to the system.

    Steps for saving a file to your personal computer’s drive from your VDI client

    1. Select Save As from within the application
    2. You can save your file directly to your home computer’s drive if you logged into the VDI client from your computer using the VMWare client. If you used the VMWare HTML process, you will not be able to do this. When you navigate, select this PC link and then your user name in the list of storage spaces. Once you have selected your name, you can navigate to the specific folder/directory where you want to save the file.
      Selecting personal storage

    Steps for saving a file to your Google Drive space.

    1. Save the file to your VDI desktop temporarily.
    2. In a separate browser window or tab, open your Google Drive space. Remember, Google Drive can be accessed after you log into Gmail by selecting the series of nine dots in the upper right hand side of the window and then the Drive icon.
    3. Drag the file from the VDI desktop to the Google Drive window to upload your file.

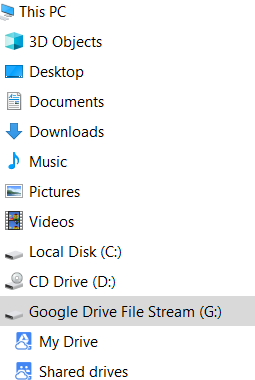

    4. Alternatively If you sign into google drive filestream there will also be a storage location labeled Google Drive file Stream (G:) this is your google drive folder synced to the VDI session saving a file here also saves to the corresponding location in google drive.
      Google Drive filestream


    To access the Google Drive File Stream (G:) follow these steps:

    Bring up the File Explorer.
    File explorer

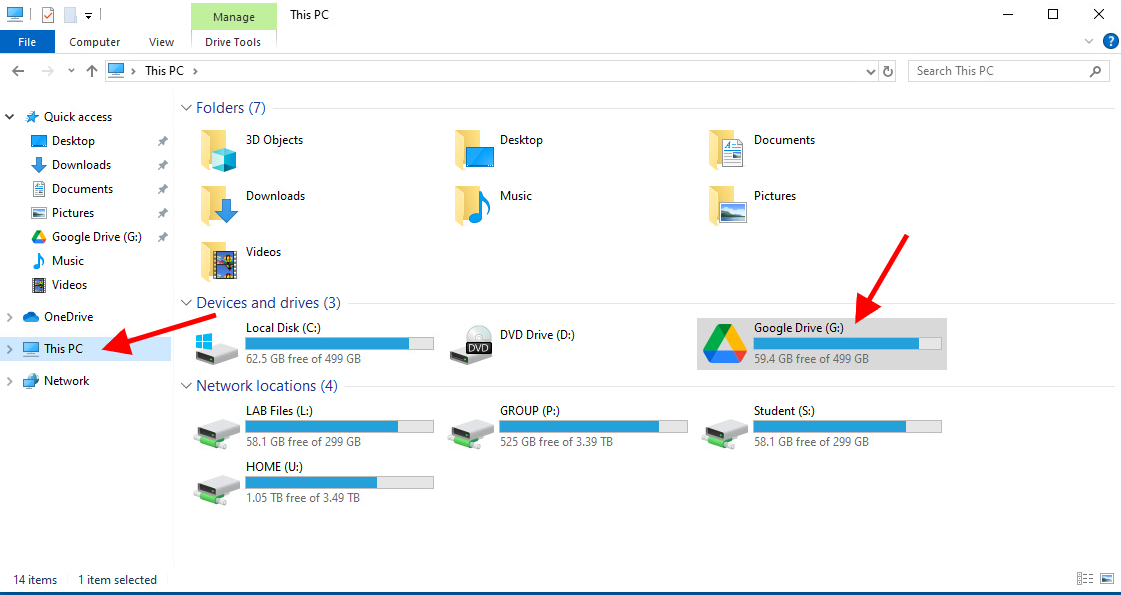

    The Windows menu is brought up when you click on the windows icon shown in the lower left hand corner of your screen (1). The menu pops up and you click the documents icon (2). A separate window pops up that will resemble the screen below but the contents will probably be different. Be sure to select “This PC” on the left and you will see “Google Drive File Stream (G:)” on the right.
    File Explorer
    When you get the window shown above click on the “This PC” icon on the left. You should get something like what we see above. If you click on the “Google Drive File Stream (G:)” icon on the right, you will find your files in Google Drive.

    Steps for saving a file to your external USB

    1. After you have logged into the VDI system and selected the Student Desktop profile, insert your USB disk into the computer. In the upper left-hand side of the VDI window, choose the USB icon (middle icon) and select the name of your USB disk. In the example, below my USB disk is titled UDISK.
      Selecting USB
    2. Next, save your file to that disk using the SAVE AS option in the application you are using such as Microsoft Word. During the SAVE AS process, you will need to navigate to the USB disk to select it.
  • If you have installed the VMware Horizon client in the above steps, then you should be able to print to the printer attached to the computer you're connecting from.  When you first log in to the Student Desktop, your computer's printer gets added to the list of available printers.  When you go to print a document and the list of available printers comes up, look for the one with "(vdi)" at the end of the name.  Example:
    VDI Printer
    NOTE: The above only applies if you have installed the VMware Horizon client.  If you connected to the "VMware Horizon HTML Access," printing to your personal computer will not work.  Remote printing only works when you connect with the installed desktop client.
  • For technical support, contact the Student Helpdesk or call 805-965-0581 (X2949) before 4 pm, Monday through Friday.

    1. Forgetting to logout of VDI - If you are using an SBCC computer on campus, be sure to logout of the computer so that people who use it after you cannot access your files.
    2. A spinning or frozen circle - This is an indication that the system is very busy trying to process your request. Please wait until you see a prompt from the computer. You can also select the keyboard Control, ALT, and Delete keys to quit the process. You may need to logout of the system and try again later when it is less busy
    3. You cannot log into the same VDI profile on more than one device at a time. Here’s a warning you will receive if you do attempt to do so. Connections sometimes take up to 10 minutes to reset so you may need to wait a few minutes before attempting to log in again.
      VDI alert
